Non-invasive brain stimulation for borderline personality disorder: a systematic review and network meta-analysis

Annals of General Psychiatry volume 24, Article number: 24 (2025) Cite this article

Abstract

Introduction

Borderline Personality Disorder (BPD) is a complex neuropsychiatric condition characterized by four main symptom domains: emotion dysregulation, behavioral dysregulation, self-image disturbances, and interpersonal instability. While psychotherapy remains the primary treatment, there is a need for additional effective interventions. Given the neuromodulatory effects of non-invasive brain stimulation (NIBS) techniques, such as transcranial magnetic stimulation (TMS) and transcranial direct current stimulation (tDCS), these methods may hold potential for addressing BPD symptoms.

Methods

A systematic review and network meta-analysis were conducted following PRISMA guidelines. A literature search (PubMed, Scopus, Web of Science, Cochrane CENTRAL) identified comparative studies assessing the effects of NIBS in BPD. The primary outcome was impulsivity, measured by the Barratt Impulsivity Scale (BIS-11). Secondary outcomes included Depressive symptoms, which were evaluated using different scales such as the Hamilton Depression Rating Scale (HAMD) and the Beck depression Inventory (BDI) scale, and anxiety symptoms were evaluated using the Hamilton Anxiety Rating Scale (HAMA).

Results

Five studies with a total of 103 patients were included. Regarding impulsivity, tDCS 2 mA showed a significant reduction compared to the control group (MD = -11.67, 95% CI [-21.44, -1.90]). For depressive symptoms, TMS 20 Hz ranked highest (SMD = -1.97, 95% CI [-3.51, -0.43]), followed by tDCS 2 mA (SMD = -1.65, 95% CI [-2.97, -0.34]). In terms of anxiety, both TMS 5 Hz (MD = -12.29, 95% CI [-24.57, -0.01]) and tDCS 2 mA (MD = -11.81, 95% CI [-17.39, -6.23]) showed significant differences.

Conclusion

Preliminary evidence suggests potential efficacy of non-invasive brain stimulation for BPD, with well-tolerated side effects with well-tolerated side effects. Although there are noticeable statistically significant differences between the interventions and control groups, the results are inconclusive due to the small sample.

Introduction

Borderline Personality Disorder (BPD) is a complex and challenging mental health condition characterized by a pervasive pattern of instability in affect, emotion, and marked impulsivity [1, 2]. One of the main symptoms of BPD is emotion dysregulation, which significantly contributes to its psychopathology. Individuals with BPD often experience unstable moods, impulsive behaviors, and turbulent interpersonal relationships [3]. The etiology of BPD is multifactorial and heterogeneous, with current theories favoring a stress-diathesis model. This model posits that BPD arises from an interaction between genetic predispositions and adverse childhood experiences, such as sexual abuse or neglect [4, 5]. The disorder imposes a substantial burden on patients, their families, and healthcare systems. Despite being historically viewed as untreatable, advancements in our understanding and management of BPD have facilitated earlier diagnoses and improved treatment outcomes [6]. In the United States, BPD affects approximately from 1.4 to 5.9% in community samples [7]. The disorder is notably associated with high rates of suicidal behavior and self-harm, with an estimated 10% of individuals with BPD ultimately succumbing to suicide [8]. BPD imposes a significant economic burden on society due to the extensive utilization of treatment services. However, studies indicate that treating BPD with evidence-based psychotherapy results in a mean cost saving of USD $2,987.82 per patient per year [9].

To understand the mechanism of BPD, many neuroimaging studies have been done to explore the mechanism leading to the manifestation of BPD. Functional neuroimaging and neuropsychology studies have identified a dysfunctional frontolimbic network that may be involved in clinical symptoms, including emotional instability and impulsivity [10,11,12,13,14]. These studies consistently illustrate dysfunctions in prefrontal regions, including the orbitofrontal cortex, ventromedial prefrontal cortex, and dorsolateral prefrontal cortex (DLPFC). Additionally, BPD patients exhibit hyperactivity of the amygdala when processing emotional stimuli, coupled with reduced functional activity in prefrontal structures responsible for emotional regulation [15,16,17,18]. A recent meta-analysis concluded that BPD patients’ impairments in the cognitive control of negative stimuli are presumably the result of blunted activity of the DlPFC along with enhanced activation of the limbic system [19]. Another meta-analysis of functional neuroimaging studies exploring neural correlates of negative emotionality in BPD showed that patients with BPD display enhanced activity in the insula and posterior cingulate cortex, but reduced activity in a network of regions including the medial PFC, subgenual anterior cingulate cortex, and DLPFC [20,21,22].

BPD remains a challenge to treat and manage. From a therapeutic perspective, although no specific pharmacological treatment has been licensed, about 75% of BPD patients regularly take psychotropic medication [23, 24]. Pharmacological treatment results remain equivocal, and these interventions show some promise in addressing impulsive behaviors, but their efficacy remains uncertain [25, 26]. Psychological interventions, particularly psychotherapy, are the first-line treatment for BPD, as recommended by the NICE guidelines. Pharmacological treatment is generally reserved for cases of acute decompensation or comorbid psychiatric conditions, although a significant proportion of BPD patients receive multiple psychotropic medications, (rTMS) and transcranial Direct Current Stimulation, (tDCS) - represent ground-breaking tools with a wide range of diagnostic, neurophysiological, and therapeutic applications, reversing maladaptive neurocircuits, inducing changes in neural tissue and improving abnormal neural connectivity in BPD. tDCS represents one of the new ways to treat patients with BPD. A simple and presumably effective way to increase cortical brain activity [27]. tDCS is a promising, low-risk, non-invasive neuromodulation technique that relies on the application of a weak direct current of 1–2 mA to generate regional changes in cortical excitability, which, depending on the duration and the polarity, can last for several minutes up to a few hours after stimulation [28, 29]. Experimental studies show that excitatory DlPFC stimulation improves cognitive control of aversive stimuli in both healthy individuals and BPD patients [30]. rTMS is a potentially innovative method in the treatment of BPD. Some studies targeted the prefrontal cortex because it is hypothesized that high-frequency rTMS (typically ≥ 5 Hz) can increase prefrontal excitability and, subsequently, prefrontal-limbic connectivity, whereas low-frequency rTMS (≤ 1 Hz) may exert inhibitory effects on cortical hyperactivity [31,32,33]. The DMPFC-rTMS has been proposed to enhance cognitive control and reduce impulsivity in patients with BPD.

Given the limitations observed in the current literature, future studies should aim to establish more standardized protocols for Non-Invasive Brain Stimulation in BPD. Specifically, randomized controlled trials (RCTs) with larger sample sizes, standardized stimulation parameters, and long-term follow-up assessments are needed to determine the sustained effects of interventions such as repetitive rTMS and tDCS. Moreover, neuroimaging-guided stimulation protocols could enhance precision in targeting dysfunctional neural circuits, such as the frontolimbic network, which is implicated in impulsivity and affective dysregulation in BPD. Combining NIBS with established psychotherapeutic approaches may also improve clinical outcomes, leveraging the potential synergistic effects of both interventions [30]. Addressing these research gaps will be critical to refining the therapeutic role of NIBS in BPD and guiding its clinical application.

Our systematic review and network meta-analysis aims to synthesize evidence on the efficacy and safety of Non-Invasive Brain Stimulation (e.g., rTMS, tDCS) in reducing core BPD symptoms, including emotional dysregulation and impulsivity, Compare the effects of different NIBS modalities (e.g., high- vs. low-frequency rTMS, TDCS) and highlight gaps in the literature to guide future research.

In this context, our study aims to provide a comprehensive synthesis of the available evidence on the safety and efficacy of NIBS for BPD, using a systematic review and network meta-analysis approach. By comparing different NIBS modalities, we seek to identify the most effective stimulation parameters and assess their impact on key clinical outcomes, including emotional regulation, impulsivity. Our findings will contribute to the development of evidence-based recommendations for the use of NIBS in BPD treatment and inform future research directions in this field.

Methods

The PRISMA guidelines were used in this systematic review and network meta-analysis [34]. We established this study according to the fundamentals of the Cochrane Handbook of Systematic Reviews of Interventions [35]. This study was previously registered on the International prospective register of systematic reviews PROSPERO (CRD42024538574).

Criteria for considering studies in this review

Studies satisfying the following inclusion criteria were included in the systematic review:

Population: studies on adult patients with a primary diagnosis of BPD according to DSM-IV / DSM-V criteria.

Intervention: rTMS or tDCS, followed for at least four weeks of stable pharmacological treatment. All frequencies (Hz) were eligible.

Comparator: studies where the control group received a Sham-control.

Outcome: Studies reporting at least one of the following measures—Depression or Impulsivity, with the latter assessed using the Barratt Impulsivity Scale (BIS).

Study design: randomized controlled trials (RCTs).

We excluded articles that were case reports/case series, thesis, conference abstracts, animal studies, secondary studies, and studies investigated other psychological disorders (Psychosis, drug abusers, and Bipolar disorders) other than BPD where the patients were not diagnosed according to the previously mentioned BPD criteria. Patients with serious or uncontrolled comorbidities, such as pregnancy, and contraindication to (TMS/tDCS) were excluded from completing the experiment in each study design.

Literature search keywords

We conducted a comprehensive search using various databases such as PubMed, Scopus, Cochrane CENTRAL, Web of science, and EBESCO for relevant studies until the 13th of June. The search strategy was:

((Borderline Personality Disorder) OR (Personality Disorder)) AND ((Non-Invasive brain stimulation) OR (Transcranial Magnetic Stimulation) OR (TMS) OR (TansCranial Direct Current Stimulation) OR (tDCS) OR (Theta Burst Stimulation) OR (TBS) OR ( Transcutaneous Vagal Nerve Stimulation) OR (tVNS) OR (Transcranial Alternating Current Stimulation) OR (tACS)).

Screening and study selection process

The process of literature search and screening were done separately by two authors (MEM and KRE). Eligibility screening was done using Rayyan [36]. Studies screening were ongoing in two levels. The first level was screening the title/abstract to ensure matching for the inclusion criteria. In the second level, we checked the full text for eligibility to our meta-analysis criteria.

Data extraction

All authors participated in the data extraction independently using an online data extraction form. The extracted data consisted of 4 domains: [1] study characteristics [2], characteristics of the study population [3], risk of bias domains, and [4] study outcomes. Data was exported as a Microsoft Excel sheet.

Assessment of risk of bias in included studies

We assessed the quality of each included study using the Cochrane risk of bias (ROB) tool [37]. The Cochrane ROB tool was designed to assess the probability of bias based on 7 domains: (a) random sequence generation, (b) allocation concealment, (c) blinding of the investigators and patients, (d) blinding of the outcome assessors, (e) incomplete outcome data, (f) selective outcome reporting, and (g) other sources of bias. After careful screening of the structure and data presented in the published RCTs. In each domain, each study was stamped as " low risk of bias “, " high risk of bias “, or " unclear”.

Measures of treatment effect

The primary outcome measurement, in studies assessing efficacy of NIBS on BPD, was the Barratt Impulsiveness Scale. It is a widely recognized and influential tool in the development of current theories on impulse control. It consists of 30 items that assess three key areas: attentional impulsivity, motor impulsivity, and non-planning impulsivity. The scores range from 30 (low impulsivity) to 120 (high impulsivity) [38].

The secondary outcome measurements were Depression, HAM-A, CGI-BPD, and BPD Severity.

HAM-A (Hamilton Anxiety) scale, which is a 14-item questionnaire used to rate the severity of a patient’s anxiety. The score takes the range of 0 (the best) to 56 (the worst) [39].

Depression was measured by different scales:

  1. 1.

    BDI (Beck depression Inventory) scale, which is a 21-item scale designed to detect the presence of depression and to measure severity of depression. The least takes the range from (0 to 13) and the most severe (29 to 63) [40].

  2. 2.

    MADRS (Montgomery–Asberg Depression Rating Scale) which is a 10-items questionnaire used to measure the severity of depression and the efficacy of antidepressant treatment, overall score thus ranges from (0 to 60) [41].

  3. 3.

    HAM-D (Hamilton Depression Rating scale). HAM-D contains a 17-item questionnaire used to measure the severity of depression. Normal (0–7), and scores over 24 indicate that the symptoms of depression are severe [42].

The clinical global impression scale for borderline personality disorder patients (CGI-BPD) is a modified version of the Clinical Global Impression (CGI) scale, specifically created to evaluate the severity and changes after treatment in patients with BPD. It includes 10 items that assess the nine key psychopathological aspects of BPD, along with an overall global score. The score takes the range of 1 (the best) to 7 (the worst) [43].

BPD severity outcomes: 1- Zanarini Rating Scale for Borderline Personality Disorder (ZAN-BPD) evaluates various aspects of BPD symptoms by assessing changes in symptoms over time. It consists of 10 items and each item is rated on a scale from 0 (no symptoms) to 4 (severe symptoms) [44]. 2- Borderline Personality Disorder Severity Index (BPDSI) is used for assessing the severity of BPD. It consists of 70 items and each item is rated on a scale from 0 (no symptoms) to 4 (severe symptoms) [45]. 3- Borderline Evaluation of Severity over Time (BEST) is designed to monitor changes in symptoms and treatment effects across different time points. It consists of 27 items and each item is rated on a scale from 0 (no symptoms) to 4 (severe symptoms) [46].

Data synthesis

For the network meta-analysis, we used Metainsight software version 15.4. We conducted a network meta-analysis according to frequentist framework. The MD (Mean difference) was adopted as the effect estimate with a 95% confidence interval (CI). All safety outcomes, dichotomous data from prospectively designed studies, were reported as risk ratio (RR) between the interventions and control group. The fixed effect model was applied for outcomes with consistent results, while the random effect model was applied for outcomes with significant heterogeneity. We considered the nearest time point through the included studies for the primary analysis in the case of multiple time points.

Assessment of heterogeneity

The Chi-square test (Cochrane Q test) was used to evaluate Statistical heterogeneity among studies. Then, the chi-square statistic, Cochrane Q, was used to calculate the I-squared according to the equation: I2\(\:=\left(\frac{\mathbf{Q}-\mathbf{d}\mathbf{f}\:\mathbf{Q}}{\mathbf{Q}}\right)\) 𝑥100%. The significant heterogeneity was considered when the Chi-square P value is less than 0.1. sensitivity analysis and sub-group analysis were performed to resolve heterogeneity. Heterogeneity in the forest plots was determined through visual inspection, while the I2 and chi-square (χ2) tests were employed to quantify it. The χ2 test was used to examine the presence of significant heterogeneity, and if heterogeneity was detected, it was measured using the I2 test. The interpretation of the I2 test follows the standards outlined in the Cochrane Handbook for meta-analysis. According to these guidelines, an I2 value of 0–40% may not be considered significant, 30–60% may indicate moderate heterogeneity, 50–90% may suggest substantial heterogeneity, and 75–100% may indicate significant heterogeneity.

Certainty of evidence

The Grading of Recommendations, Assessment, Development, and Evaluations (GRADE) approach has been used to rate the power of the evidence for each outcome based on the risk of bias, imprecision, indirectness, inconsistency, and publication bias. We assessed the certainty of evidence using the GRADE approach [47].

Results

Results of literature search

A total of 1184 unique articles were included in the process of literature search by two independent authors (MEM and AEE). Of them, 356 were identified as duplicates by Rayyan. Twelve unique full texts were reviewed and screened for the eligibility criteria. The included RCTs in this meta-analysis were five. The PRISMA flow diagram of the study selection process is shown in Fig. 1.

Fig. 1
figure 1

The PRISMA flow diagram

Full size image

Characteristics of included studies

A total of 103 patients were represented in 5 articles. Patients were assigned to receive (TMS /tDCS) or SHAM for at least a session/day. The recruited patients with age range (18–65) years, had a primary diagnosis of BPD according to DSM-V or DSM-IV. The duration of each trial ranged from 3 weeks to 3 months and the dose from (5–20 Hz). A summary of the included studies is shown in Table 1, and the baseline characteristics of their populations are shown in Table 2.

Table 1 Summary of the included studies
Full size table
Table 2 Baseline characteristics of included studies
Full size table

Risk of bias of included studies

The quality of each study was assessed according to the Cochrane Handbook of Systematic Reviews of Interventions by two independent authors (MEM, KRE, MAA). Four of the included studies were rated as High risk of bias and one study was rated as some concerns. A summary of quality assessment domains is shown in (Figure 2).

Fig. 2
figure 2

Quality assessment using Cochrane risk of bias tool

Full size image

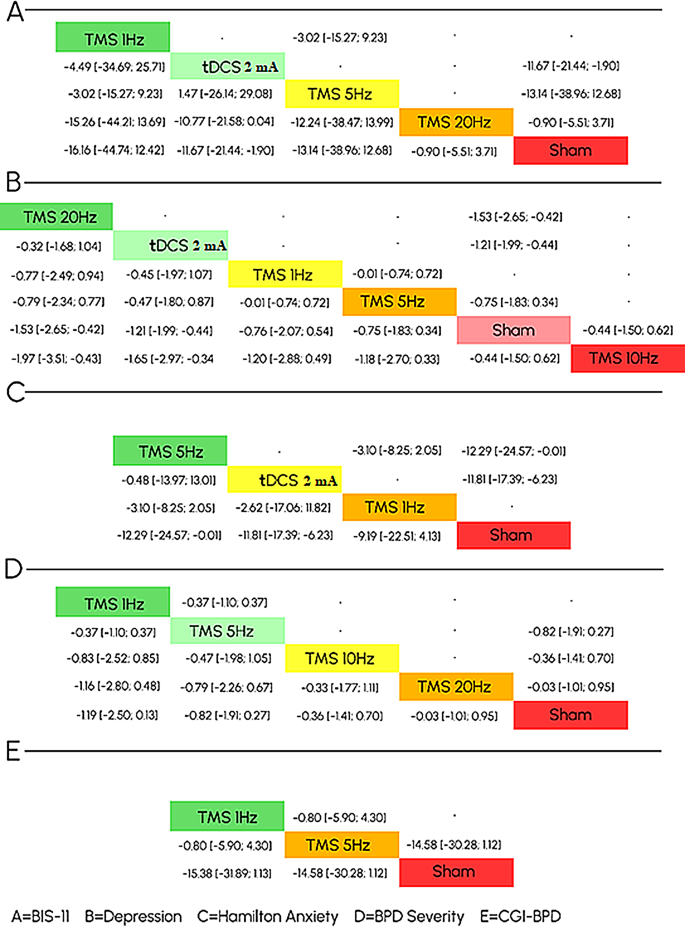

Fig. 3
figure 3

Primary and secondary outcomes

Full size image

Primary outcome

BIS-11

Four studies comprising 97 patients reported the BIS-11 scale. Figure 3 A showed network estimates of intervention effect on Impulsivity for different techniques compared to sham control. The top two ranked techniques compared to sham control were TMS 1 Hz (MD -16.16, 95% CI [-44.74 to 12.42]) followed by tDCS 2 mA (MD -11.67, 95% CI [-21.44 to -1.90]). Only tDCS 2 mA showed a statistically significant difference. The network plot of Impulsivity is shown in Figure (3 a), each node represents a different technique; the sham control was the most common intervention well-connected with all other interventions directly linked to it. So, it has been used as a reference for comparison.

Depression

Five studies comprising 111 patients reported the BIS-11 scale. Figure 3B showed network estimates of intervention effect on Depression for different techniques compared to sham control. The top two ranked techniques compared to sham control were TMS 20 Hz (SMD − 1.97, 95% CI [-3.51 to -0.43]) followed by tDCS 2 mA (SMD − 1.65, 95% CI [-2.97 to -0.34]). Both interventions showed a statistically significant difference. The network plot of Impulsivity is shown in Figure (3b).

Secondary outcomes

Anxiety

Three studies comprising 77 patients reported the BIS-11 scale. Figure 3 C showed network estimates of intervention effect on Depression for different techniques compared to sham control. The top two ranked techniques compared to sham control were TMS 5 Hz (MD -12.29, 95% CI [-24.57 to -0.01]) followed by tDCS 2 mA (MD -11.81, 95% CI [-17.39 to -6.23]). Both interventions showed a statistically significant difference. The network plot of Impulsivity is shown in Figure (3c).

BPD severity

Four studies comprising 73 patients reported BPD Severity. Figure 3 C showed network estimates of intervention effect on Depression for different techniques compared to sham control. The top two ranked techniques compared to sham control were TMS 1 Hz (SMD − 18.46, 95% CI [-38.30 to 1.38]) followed by TMS 5 Hz (SMD − 12.46, 95% CI [-29.06 to 3.54]). The network model did not show a statistically significant difference among all interventions. The network plot of Impulsivity is shown in Figure (3d).

CGI-BPD

Two studies comprising 43 patients reported CGI-BPD. Figure 3 C showed network estimates of intervention effect on Depression for different techniques compared to sham control. The network model did not show a statistically significant difference among all interventions. The network plot of Impulsivity is shown in Figure. Among the nine domains of BPD-CGI, TMS 1 Hz was top-ranked in Abandonment, Anger, Emptiness, Impulsiveness, Paranoid, and Suicidal Ideation. The network model did not show a statistically significant difference among all interventions except Impulsiveness and Paranoid ideation both interventions showed substantial differences, TMS 1 Hz (MD -3.11, 95% CI [-4.37 to -1.85]) followed by TMS 5 Hz (MD -2.71, 95% CI [-3.91 to -1.51]) However TMS 1 Hz was top ranked in for Paranoid ideation, only TMS 5 Hz showed significant difference (MD -2.28, 95% CI [-4.47 to -0.09]). All forest plots of behavioral domains are shown in Supplementary (S1-S9).

Safety

It is important to note that no severe side effects were observed in any of the included studies. In Lisonia et al, only five patients showed tingling, and itching sensations during stimulation due to tDCS 2 mA. Non-invasive brain stimulation techniques are well-tolerated treatment options for BPD patients.

The GRADE approach of outcomes

Outcome

Participants

(studies)

Follow-up

Risk of bias

Inconsistency

Indirectness

Imprecision

Publication bias

Overall certainty of evidence

BIS-11

Serious a

not serious

not serious

not serious

not serious

none

⨁⨁⨁◯

Moderate

Depression

Serious a

not serious

not serious

not serious

not serious

none

⨁⨁⨁◯

Moderate

HAM-A

Serious a

not serious

not serious

not serious

not serious

none

⨁⨁⨁◯

Moderate

BDA Severity

Serious a

not serious

not serious

not serious

Serious b

none

⨁⨁◯◯

Low

CGI-BPD

Serious a

not serious

not serious

not serious

Serious b

none

⨁⨁◯◯

Low

  1. CI: confidence interval
  2. Explanations:
  3. a. Presence of studies with a high risk of bias.
  4. b. The confidence interval in each intervention is wide which includes clinically important values.

Discussion

Significance of the study

To the best of our knowledge, this is the first systematic review and network meta-analysis comparing the efficacy of TMS and tDCS in BPD. This study evaluates the efficacy of different non-invasive brain stimulation techniques and ranks them by effectiveness across frequencies. Therefore, encourage of conducting future trials involving different techniques such as Theta Burst Stimulation (TBS), Trans Alternating current stimulation (tACS), and Percutaneous Vagal Stimulation.

Summary of the findings

A total of 103 patients with BPD were included in 5 RCTs comparing TMS, tDCS, and Sham-controlled were evaluated in this study. We found that each outcome demonstrates the highest efficacy of specific frequency each time. So, that means that each frequency intervention is effective in specific domain in the disease. These differences in results could be due to the variation of each technique which can be implicated in the pathophysiology of the disease in different ways.

BIS

Although TMS 1 Hz did not show a significant difference in the analysis model, it was the top-ranked protocol in this outcome. TMS 1 Hz, there are several explanations which could explain the results. Recently, research indicated that the low-frequency protocol has led to the successful induction of anticorrelated connectivity between the DLPFC and medial prefrontal default mode network (DMN) node [52]. The DMN node is an area found to be active when the individual is engaged in internal thoughts and self-reflection. Also, conducting TMS 1 Hz was found to be associated with a notable alteration in the asymmetry of alpha power towards the right lobes [53]. Alpha power is a neural oscillation (brain wave) measured in different brain activities. It is characterized by waves (8–12 Hz) and it has been suggested that the alpha wave may be involved in the attentional process and prominent during relaxed wakefulness [54].However tDCS 2 mA was ranked secondary in the analysis model, tDCS 2 mA showed significant difference. Conducting tDCS 2 mA plays a crucial role in increasing top-down regulation of the lower-level processes which is the ability of the brain to regulate lower-level cognitive and behavioral processes. In addition, stimulating the right DLPFC by tDCS 2 mA may lead to restoring the interhemispheric disruption [55]. Based on all of that, tDCS 2 mA becomes efficient in reducing impulsivity in BPD. There are some technical factors that could explain the results. In Lopez et al, the technicians used the highest angulation angle (150o). A higher angulation angle of the device could alter the stimulation focus and depth, potentially affecting the targeted neural circuits involved in impulse control [56]. In addition, authos used high motor threshold (100%) [56].

Depression and anxiety

Depression episodes are the most common comorbidity of BPD. TMS protocols have been widely explored in depression and they are approved for major depressive disorder. The role of TMS 20 Hz in Neuroplasticity Induction leads to long-lasting changes in neural circuits. Also, normalization of the brain activity. All of these can explain the top ranking of TMS 20 Hz for depression symptoms [57, 58]. As TMS 1 Hz in our result is the third-ranked protocol, using the previous suggestion on BPD could be more efficient. As impulsiveness, tDCS 2 mA also achieved the second rank. The efficacy of tDCS 2 mA in depression remains inclusive with unclear evidence in recent years. However, tDCS 2 mA was noticed to stimulate the electric field in the left anterior cingulate cortex, a region of the frontal lobes which implicated in emotion, cognition, and motor control [59]. In addition, tDCS 2 mA might be associated with the regulation of negative effects after DLRPC stimulation [60]. Therefore, future studies should study the actual role of tDCS 2 mA in the pathophysiology of depression, especially in BPD patients. Some technical differences could also give reasons for these results. In Feffer et al, authors used the heighst number of pulses per session (3000) over the other trials. Higher pulses could show better antidepressant and antianxious effects rather than lower number of pulses [61].

CGI-BPD and BPD severity

In our study, no interventions showed significant difference, however TMS 1 Hz was top ranked over TMS 5 Hz in both outcomes. This can be explained by several factors such as the limited number of included studies and patients making it difficult to synthesize significant evidence. So, further studies are needed to show the certain effect of each intervention.

A critical aspect of NIBS interventions in BPD that warrants further exploration is the impact of laterality (right vs. left hemisphere stimulation) on clinical outcomes. While our meta-analysis primarily focused on differences in stimulation protocols, accumulating evidence suggests that right prefrontal cortex stimulation, particularly over the right DLPFC, may be associated with greater improvements in impulsivity control, aligning with neurobiological models that link right hemisphere dysfunction with impaired inhibitory control (Brevet-Aeby et al., 2016). Conversely, left hemisphere stimulation, often targeted for affective symptoms, may exert differential effects on mood regulation. Prior systematic reviews, particularly Lisoni et al. (2022, 2024), have emphasized a symptoms-based approach to NIBS in BPD, highlighting the need for standardized protocols to determine whether the observed effects are attributable to laterality or other stimulation parameters. The heterogeneity in stimulation protocols across the included studies, such as differences in frequency, intensity, session duration, and stimulation site, limits direct comparisons and makes it difficult to disentangle the effects of stimulation site from other variables.

Strength points and limitations

This network meta-analysis has several strengths. It is the first systematic review and Network meta-analysis studying the different non-invasive brain stimulation techniques for BPD. We used the GRADE qualification to assess the quality of evidence for the efficacy outcomes. The studies spanned a wide geographical range with a variety of populations. The most prominent limitation of the study was the low sample size due to the limited number of the included trials. So, our results are not conclusive. Although there were various including populations, they were all from Western countries with high or middle income. Some studies used different scales for depressive symptoms and BPD severity. We suggest future trials to confirm their effectiveness with all these limitations corrected.

Implications for future research

This meta-analysis supposes that non-invasive techniques could be beneficial treatment for patients primarily diagnosed with BPD. Since the only available treatment of BPD is psychotherapy with limited treatment options. So, exploring newt interventions becomes essential for a better quality of life for patients and to reduce the economic burden on the health care system. Future trials should consider the other non-invasive techniques such as TBS, tACS, and Vagal that showed promising results in other meant diseases.

Conclusion

In conclusion, this systematic review and network meta-analysis demonstrate that non-invasive brain stimulation techniques, particularly TMS 20 Hz, TMS 5 Hz and tDCS 2 mA, suggest potential benefits for BPD. These techniques were found to significantly improve symptoms related to impulsivity, depression, and anxiety, with specific frequencies of stimulation proving more effective for outcomes. While the findings highlight the potential of these interventions, the limited sample size and heterogeneity across studies underscore the need for larger, more robust clinical trials to validate these results.

Data availability

No datasets were generated or analysed during the current study.
